Description

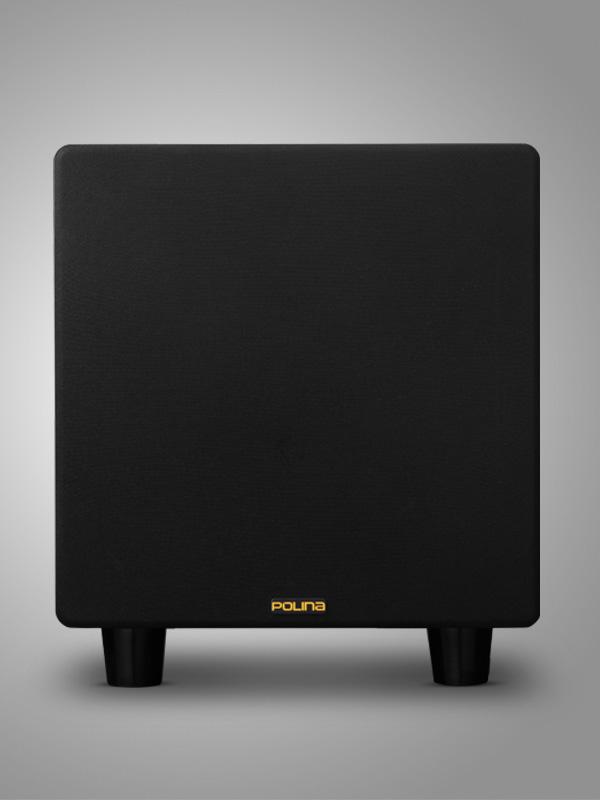

MODEL：S10-A
Type:A SERIES 10 Inch Active subwoofer System
Drivers：1 x 10 inches
Power Handling:300W；Max SPL output(1m):110dB
Input voltage: 100-240V AC (switch 100-120V AC or 220-240V AC)
Frequency response (±3dB):35Hz-300Hz Impedance:22K

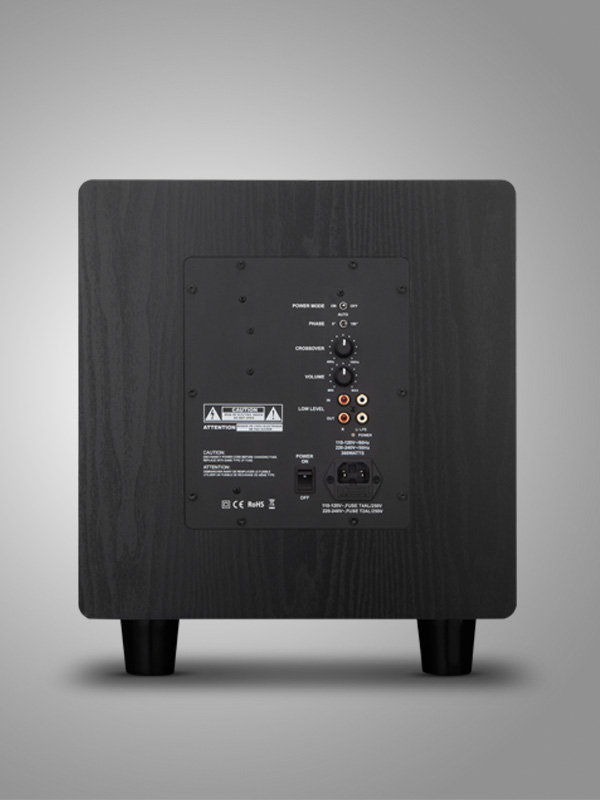

Input/Output port: 1 for RCA stereo input /1 for RCA stereo output
Product dimensions:H340 x W340 x D365 mm ((w/o foot)
H 390 x W 340 x D365 mm ((w/foot)
Shipping size: H470 x W435 x D475 mm
Weight: 15.7/34.61（kg/lb）
Shipping Weight:18.00/39.68（kg/lb）
Product features:
Redefine the "entry level" elegant refined cost-effective subwoofer

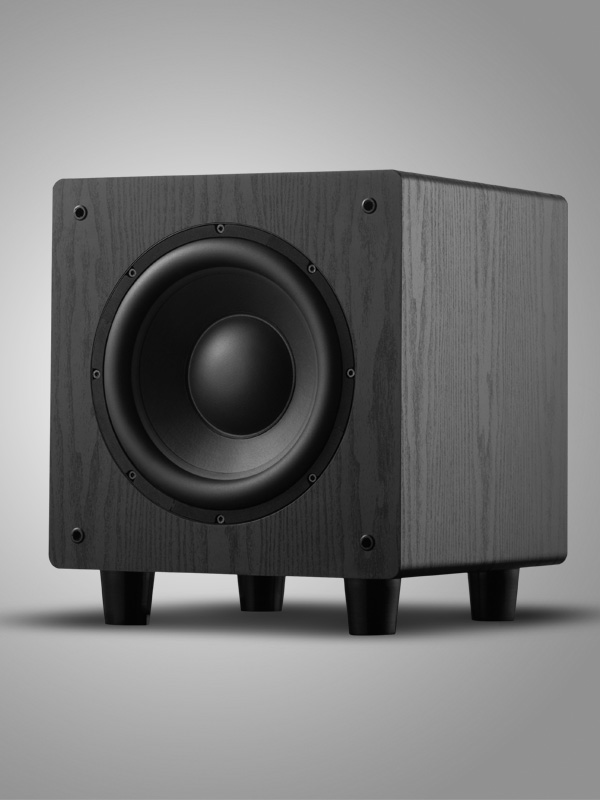

The new S10-A subwoofer is A 10-inch non-press Cone pine woofer with A specially
painted surface and A unique drying method to form A strong sound basin. Assisted
with long stroke voice coil and aerospace grade magnetic circuit, it can reproduce
loose low frequencies with excellent accuracy. Guided structure design ensures low
frequency sense of volume and diving.
The power supply part of the power amplifier adopts the industry-leading LLC resonant
soft switching power supply technology, which has the advantages of high conversion efficiency,
low temperature rise, low ripple noise, small interference, small volume, large power density,
fast dynamic response, stable output voltage, etc. The power amplifier adopts class-D digital
audio technology, with strong overload capacity, sufficient power reserve, better "dynamic"
characteristics, good transient response, "burst feeling" is very strong.
